HEMERA™ GPE 500 |
|
|
CPP Solar is a US manufacturer and a global supplier of photovoltaic backsheets and frontsheets. Our HEMERA™ backsheets consists of KYNAR® PVDF which is a 20+ year proven performance in the PV industry which protects modules from moisture and UV to provide long term protection to the modules. CPP Solar provides a broad array of backsheet choices and we also work closely with module manufactures to provide innovative backsheets to meet their requirements and protect their modules.
HEMERA™ GPE 500 is a multi-layered film lamination designed to be used as a backing sheet for photovoltaic solar panels. This traditional construction of PVDF/PET/EPoffers the proven performance of a fluoropolymer based backsheet. |
| |
| Advantages: |
- Proven KYNAR® PVDF performance
- Increased bond strength
- High UV protection
- Excellent moisturebarrier
- Outstanding thermal stability
- Long termweatherability
- Dielectric Strength
- Inherentfire resistance
- Available in variety of colors
|
|
|
|
| |
|
Hemera PE 750 |
|
|
CPP Solar is a US manufacturer and a global supplier of photovoltaic backsheets and frontsheets. Our HEMERA™ backsheets consists of KYNAR® PVDF which is a 20+ year proven performance in the PV industry which protects modules from moisture and UV to provide long term protection to the modules. CPP Solar provides a broad array of backsheet choices and we also work closely with module manufactures to provide innovative backsheets to meet their requirements and protect their modules.
HEMERA™ PE 750 is a two-layered film lamination designed to be used as a backing sheet for lower wattage photovoltaic solar panelsand for consumable products. It acts as an electrical barrier for the PV module, protecting the electronics and isolating them from the rest of the product. |
| |
| Advantages: |
- Increased bond strength
- Excellent dielectric strength
- Increased vacuumlamination throughput
|
|
|
|
| |
|
PV-JB001 Junction Box for Crystalline Silicon PV Modules |
|
|
|
|
| Product Description: |
- High-current, high voltage carrying capacity, suitable for 180W crystallne silicon PV modules.
- A variety of connectivity options, can provide 2-4 set of input rails, can meet the dlflerent bypass the use of crystallne silicon PV modules needed.
- Products can be applied In a variety ol backplane, has TPT, TPE, and PYE report prepared for a variety of back.
- Products are sold through TUV and RoHs certilicatlon. and obtain ufty model patents.
|
| |
| Main technical parameters. |
| Current for PV Module : |
7.0A |
| Rated Voltage: |
I DC 1000V |
| Protection Degree : |
IP66 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2-4 |
| Wire Size : |
4mm2 |
| contact Resistance |
I <0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Standard: |
DIN V VDE V 0126-5:2008 |
| Authentication: |
TOv Rohs |
| Overall Dimensions: |
94'94*29mm |
|
|
|
|
| |
|
PV-JB002 Junction Box for Crystalline Silicon PVModules |
|
|
|
| Product Description: |
- High-current, high voltage carrying capacity, suitable for high-power 280W crystalline silicon PV modules and ultra-high power crystalline silicon PV modules.
- A variety of connectivity options, can provide 4-6 set of input rails , more power to meet the multi-bypass the need to use crystalline silicon PV modules.
- Products can be applied in a variety of backplane, has TPT, TPE and PYE report prepared for a variety of back.
- Products are sold through TUV and RoHS certification, and obtain a utility model and the appearance of two patents.
|
| |
| Main technical parameters. |
| Current for PV Module: |
10A |
| Rated Voltage |
DC 1000V |
| Protection Degree : |
IP66 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2-6 |
| Wire Size : |
4mm2 |
| contact Resistance |
<0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Standard: |
DIN V VDE V 0126-5:2008 |
| Authentication: |
TOv RoHs |
| Overal Dimensions: |
147*102*25mm |
|
|
|
|
| |
|
PV-JB004 Junction Box Specifically for Thin-Film PV Modules |
|
|
| Product Description: |
- Low-profile ultra-thin design, tailored spacitically for thin—film PV module production
- Structure, simple and reasonable, safe and practical easy to use.
- Products can be applied In a variety of backplane, has glass, TFT, and a variety of TPE report prepared 1or a variety ot back.
- Products are sold through TUV and RoHS cartitication, and obtained two patents tor utility model and appearance.
|
| |
| Main technical parameters. |
| Current for PV Module: |
3.5A |
| Rated Voltage |
DC 1000V |
| Protection Degree : |
IP67 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2 |
| Wire Size : |
4mm2 |
| contact Resistance |
<0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Standard: |
DIN V VDE V 0126-5:2008 |
| Authentication: |
TOv RoHs |
| Overal Dimensions: |
65*53*14.5mm |
|
|
|
|
| |
|
PV-JB006 Junction Box for Low Power PVModules |
|
|
| Product Description: |
- Excellent water and dust effects, using irrigation methods sealing glue.
- Low-profile, ultra-thin design, structure simple and practical, applicable to 90W crystalline silicon PV modules or thin film PV modules.
- Bus, as well as the connection cables are connected using welding, electrical perfomance, then safety and reliability
|
| |
| Main technical parameters. |
| Current for PV Module: |
6.5A |
| Rated Voltage |
DC 1000V |
| Protection Degree : |
IP65 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2-3 |
| Wire Size : |
4mm2 |
| contact Resistance |
<0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Overal Dimensions: |
83*49*16mm |
|
|
|
|
| |
|
PV-JB016 Junction Box for Low power PV module |
|
|
| Product Description: |
- Special designed for 5Dwattto 150 watt solar panel .Widely used in solar strast lights ,salar lawn lights Btc
- Adopt welding and crimping connect way .easy .quick and reliable Win Low price .reduce production cost.
|
| |
| Main technical parameters. |
| Current for PV Module: |
6.5A |
| Rated Voltage |
DC 1000V |
| Protection Degree : |
IP65 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2-3 |
| Wire Size : |
1.5mm-4mm2 |
| contact Resistance |
<0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Overal Dimensions: |
88*73.8*21mm |
|
|
|
|
|
|
| |
|
PV-JB017 Junction Box for Low power PV module |
|
|
|
| Product Description: |
- With one or two output hol&provide various wire conrect way
|
| |
| Main technical parameters. |
| Current for PV Module: |
6.5A |
| Rated Voltage |
DC 1000V |
| Protection Degree : |
IP65 |
| Touch Protection Class : |
II |
| Temperature Range : |
-40°Cto85°C |
| Number of terminals : |
2 |
| Wire Size : |
1.5mm-4mm or 1.5mm-2.5mm |
| contact Resistance |
<0.5m0 |
| Flame Class: |
UL94-V0 |
| Contact Matarial: |
Copper |
| Insulation Metenrial: |
PPO |
| Overal Dimensions: |
59.5*59.5*21mm |
|
|
|
|
| |
|

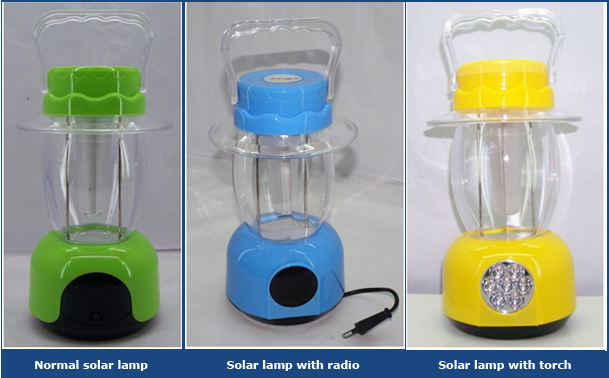

Solar Lanterns |
|
| |
 |
| |
| |
